Induced Breeding and Early Development of Stinging Catfish, Heteropneustes Fossilis (Bloch) (Siluridae)

Olufeagba S.O.1 , Raji A.2 , Majumda K.C.3 , Ravinda K.3 , Okomoda V.T.1
1. Department of Fisheries and Aquaculture, University of Agriculture, Makurdi, Nigeria
2. National Institute for Freshwater Fisheries Research, P.M.B. 6006, New Bussa, Niger State, Nigeria
3. Centre for Cellular and Molecular Biology (CCMB), Uppal Road, Habsiguda, Hyderabad 500 007, India
Author    Correspondence author
International Journal of Aquaculture, 2015, Vol. 5, No. 13   doi: 10.5376/ija.2015.05.0013
Received: 03 Apr., 2015    Accepted: 08 May, 2015    Published: 09 Jun., 2015
© 2015 BioPublisher Publishing Platform
This is an open access article published under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Preferred citation for this article:

Olufeagba S.O., Raji A., Majumda K.C., Ravinda K., and Okomoda V.T., 2015, Induced Breeding and Early Development of Stinging Catfish, Heteropneustes Fossilis (Bloch) (Siluridae), International Journal of Aquaculture, 5: 1-7 (doi: 10.5376/ija.2015.05.0013)


Induced breeding, embryogenic chronology and larva development of Heteropneustes fossilis were studied in this work. One sexually matured female was injected intramuscularly with dry carp pituitary gland suspension at 4 mg/ kg- of body weight. After a latency period of eight hours, the female was stripped while the male was sacrificed to remove the testes which were macerated to fertilize the eggs. Incubation was carried out at 27℃ and the different stages of embryo were photographed using a Nikon SMZ 800 binocular microscope. Hatching started 23.53 hrs after fertilization and the percentage hatchability was 97.5%. Hatchlings had a mean length of 2.5 mm and mean yolk diameter of 0.1 mm. The yolk was completely absorbed between the third and fourth day of hatching and exogenous feeding started on the fourth day of hatching. The mean percentage survival was 75%.

17 Heteropneustes fossilis; Cleavages; Ontogeny; Embryogenesis; Blastomeres; Hatchlings

1 Introduction
Indian catfish (Heteropneustes fossilis Bloch, Siluridae) popularly called Singhi or stinging fish is fast becoming an important fish species in India. Unfortunately, it has a poor growth rate. At sexual maturity, female weighing about 100 gm can release about 8000 eggs. The eggs become sticky when fertilized and incubation period was reported to be between eighteen to twenty four hours depending on temperature (Singh et al., 1982; as quoted by Thakur, 2003). One of the major problems militating against the production of H. fossilis is poor survival rate due to mass larvae mortality and cannibalism. There is also lack of technical know how on their artificial production.

The understanding of the embryogenesis is a basic knowledge that is required to achieve success in improving the artificial production of any species and also improve their growth rate. A good knowledge of the embryogenesis will help to improve their culture practice, understand the species adaptations and improve artificial breeding techniques. Apart from these, (Koumoundouros et al., 2001) and (Borcato et al., 2004) also elucidated on the use of the knowledge of ontogeny in understanding the biology of any species and the functional trends and environmental preferences of the different developmental stages. Furthermore, the knowledge is essential for the development of potentials for detailed comparison between species (Verreth et al., 1992). Embryological studies are made easy because of the transparent nature of the embryo and its’ small size (Osman et al., 2008). Published work on the embryogenesis of H. fossilis is limited except for works like that of (Haniffa et al., 2002); Thakur (2003); (Thakur et al., 1974); and Kohli and Vidyarthi (1990). However, information on similar catfishes like Heterobranchus longifilis (Olufeagba, 1999); Channa punctatus (Banerji, 1974); Clarias batrachus (Thakur et al. 1974); Clarias gariepinus (Osman et al., 2008) and Channa stratus (Marimuthu and Haniffa, 2007) are available. To this end therefore, this study on Heteropneustes fossilis was carried out to monitor the embryogenic chronology, embryo survival and larva development with the aim of improving their artificial propagation.

2 Materials and Methods
This study was carried out at the Pisciculture Laboratory of the Center for Cellular and Molecular Biology, Hyderabad, India. The parent stocks were collected from the rearing tanks in the Pisciculture Laboratory. The female was injected intramuscularly with dry carp pituitary gland suspension at a dose of 4 mg/kg of body weight. After a latency period of eight hours at 27℃, the female was stripped while the male was sacrificed to remove the testes which were macerated in fish ringer (0.75% Nacl, 0.02% KCl and 0.04% CaCl2). The eggs and spermatozoan were mixed and sufficient water was added to activate the spermatozoan. Mean length of unfertilized and fertilized eggs, embryo and larvae were taken. The eggs were incubated in 200 ml glass bowls inside the laboratory (temperature= 27℃). The water quality was maintained at the optimum condition (dissolved oxygen =5 mg/l, pH= 7.0) by changing water in the incubation bowls every two hours with fresh aerated de-chlorinated water.

Photographs of embryo development from egg stage to when they were 4 days old were taken with binocular microscope (Nikon SMZ 800). The time of occurrence of the different stages of development; egg fertilization, polar cap formation, 2, 4, 8, 16, 32- cell stages, morula, blastula, gastrula, somite formation and hatching were recorded. Two sets of twenty-fertilized eggs were separately monitored in 200 ml glass bowls to determine the fertilization rate, embryo survival rate from time of hatching till when they were four days old. Ontogenic development, endogenous feeding and commencement of exogenous feeding were also monitored. Fry were fed with Artemia and paramecium ad libitum twice in a day starting after yolk absorption.

3 Results
The female freely released eggs on gentle striping after eight hours of latency period. The eggs were green, translucent, round and moderately sticky with a mean diameter of 1mm. The eggs were surrounded by jelly and oily chorion wall (Figure 1a). Immediately after fertilization, the micropile closes up and oil globules were produced and soon dissolved again. The chorion wall swelled up and was lifted up from the newly fertilized egg (Figure 1b).There is accumulation of cytoplasm at the anterior part to form the animal pole (blastodisc) and yolk at the  posterior part to form the vegetal pole (Figure 1c). All subsequent cell divisions occurred in the blastodisc, while the posterior part developed to form the nutritive yolk. The mean fertilization rate was 97.5% (Table 1).

Figure 1 Stages of embryonic development in Heteropneustes fossilis. a=egg. b=zygote. c=fertilized egg. d=2-cells stage. e=4-cells stage. f=8- cells-stage. g=16-cells stage. h=32-cells stage. i= 64-cell stage. j=Morula stage. k= blastula. l= gastrula stage m= Embryonic shield. n=70% epiboly. o= 75% epiboly. p= 80% epiboly q=90% epiboly r=somite formation. s. 12-somites. t = Heart formation (arrow). U=13-somites v= 15-somites w=17-somites x=20-somites y= 25-somites

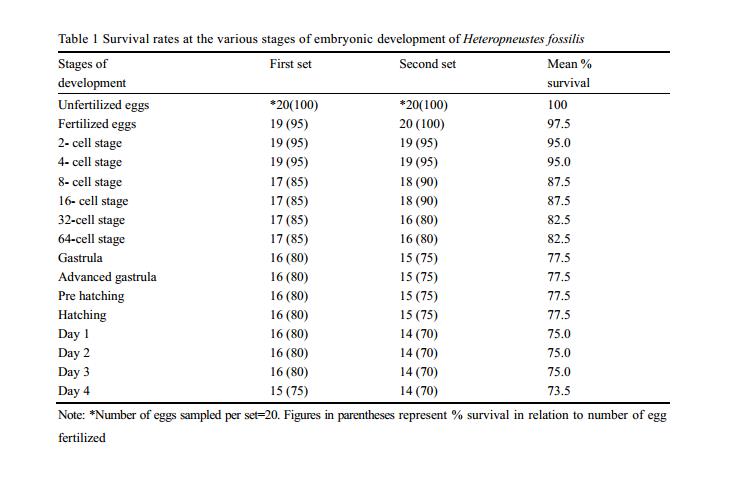

Table 1 Survival rates at the various stages of embryonic development of Heteropneustes fossilis
Note: *Number of eggs sampled per set=20. Figures in parentheses represent % survival in relation to number of egg fertilized

Because the eggs were mildly adhesive, it was easy to observe the rate of development of each egg individually. Details on the time of cleavage and their description are presented in Table 2. The first cleavage which was meroblastic in nature producing two blastomeres from the blastodisc occurred 14 – 18 minutes after fertilization (Figure 1d). The second line of division which was perpendicular to the first line of division occurred within 31-34 mins after fertilization producing four blastomeres (Figure 1e). Within 41-45 mins of fertilization, the third cleavage took place producing 8 cells arranged in two rows of four cells (Figure 1f). The 16- cell stage occurred between 55-58 mins after fertilization (Figure 1g). As from the fourth cleavage which produced sixteen cells, the blastomeres were difficult to count as all consecutive divisions led to reduction in cell size. Not long after the last cleavage occurred, the 32-cell stage started at exactly the 60th mins after fertilization till the 63rd mins after fertilization (Figure 1h). The 6th round of cleavage produced 64-cells, and this took place 80 minutes after fertilization (Figure 1i).Some blastomeres cover other ones at this stage making counting of individual cells impossible. Between this period and the 187th minutes after fertilization, four rounds of cleavages occurred leading to the formation of the Morula stage with elevated rhomboid multicellular blastodisc (Figure 1j). The blastodisc soon flattens into lozenge shaped blastula (Figure 1k) at the 240th minutes after fertilization. The Gastrula was formed at the 426th mins after fertilization (Figure 1l).The thinning out of the blastodisc continues leading to formation of the advanced gastrula at 673rd minutes after fertilization and then the development of the embryonic shield at the 843rd mins after fertilization (Figure1m). The margin of the blastoderm advances around the yolk downward. Figure 1n represents epiboly of 70%, while Figure 1o represents 75% epiboly. Figure 1p represents 80% epiboly followed by 90% epiboly represented in Figure 1q. Somite formation started from the 587th  minutes after fertilization producing 2 somites in the first segmentation (Figure 1q). Figure 1r shows 4 somites stage and Figure 1s shows 12 somites stage. Segmentation process led to increases in the length of the embryo. Wriggling movement started slowly at the 967th minutes after fertilization (once per minute) and soon increased to about 48 times per minute. Time of occurrence of the different stages of embryo development is represented graphically in Figure 2.

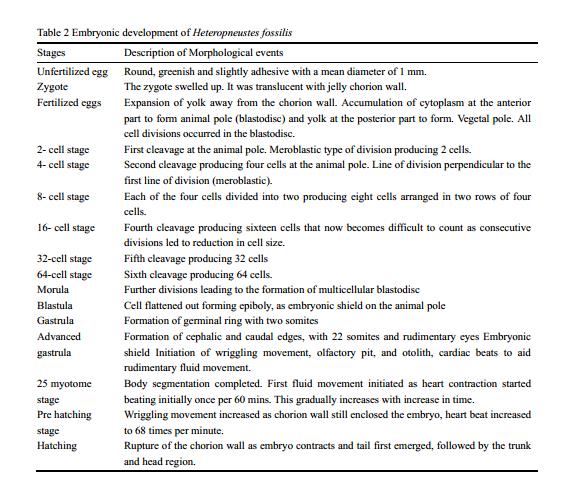

Table 2 Embryonic development of Heteropneustes fossilis

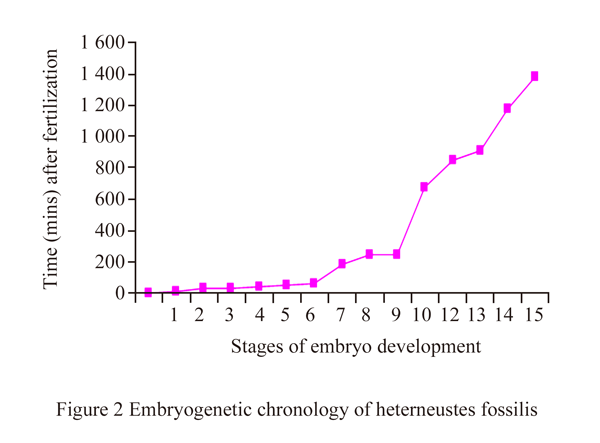

Figure 2 Embryogenetic chronology of Heterneustes fossilis

Between this time and the time of hatching, several morphological structures and organs were formed. These included formation of cephalic and caudal edges, rudimentary eyes, olfactory pit, otolith and cardiac beats (Figures 1t - 1y) to aid rudimentary fluid movement. Body segmentation was completed and fluid movement was initiated as heart contraction started. The rate of heart beat was only once per min at the time of initiation of heart beat, this gradually increased with increase in time (Figure 1t). As wriggling movement increases (Figure 1y), the chorion wall got ruptured. It was the tail that emerged first, followed by the trunk as hatching finally took place at exactly 1373rd minutes after fertilization (Figure 3a). Hatching in all surviving eggs took a period of fifteen minutes altogether. At hatching, the egg shell (chorion wall) busted due to strong wriggling movement of the fry. The egg shell were removed otherwise they will soon become primary initiator of fungus infection which can cause fry mortality. Yolk size reduction started few  hours after hatching revealing that the embryos have started endogenous feeding which lasted for between three and four days (Figures 3b - 3f).

Figure 3 Stages of larvae development in Heteropneustes fossilis .a=hatchling. b= 12 hours. c=24 hours d=48hours. e=72hours. f=96hours

Only one egg representing 2.5% of the 40 eggs mixed with spermatozoan and activated was unfertilized (Figure 4a). At two-cell stage only one zygote died in all the eggs (Figure 4b). However, at eight-cell stage, 3 eggs representing 13.5% of total fertilized eggs died and these soon turned whitish making it easy to identify and were removed. At the gastrula stage, few eggs also died. These were seen in form of attenuated embryos (Figure 4c). One hatchling was seen dead with loosed body texture at about twenty hours after hatching (Figure 4d).

Figure 4 Stages of embryonic development of the Heteropneustes fossilis. a= unfertilized egg b= Two-cells stage c= Abnormal embryo. d. Abnormal hatchling. e = embryo with spliced stomach

4 Discussion

Artificial propagation was successfully carried out in H. fossilis and the photographs of the embryological chronology were taken revealing the stages in the development of the organs and systems in the body. The latency period of eight hours reported in this work was quite short compared with the 18 to 24 hours and 21 to 24 hrs reported for the same species by Haniffa and Sivasubbu (2002) and Roy and Pal (2006) respectively. The mean fertilization rate recorded (97.5%) was higher than 70 to 75% reported by Haniffa and Sivasubbu (2002) and 93% reported by Roy and Pal (2006) for the same species. These variations could be due to differences in the ripeness of eggs used or methods of activation that were however not reported by the authors. The shortness in the incubation period (22 hrs 8 mins) is an advantage for quick and mass artificial production of this species.

The embryogenetic chronology was similar to other freshwater siluriforms like C. gariepinus (Kamler et al., 1994), C. gariepinus (Osman et al., 2008) and H. longifilis (Olufeagba, 1999). According to the report of (Thakur et al., 1974) on H. fossilis, the first cleavage occurred in about 30mins after fertilization and the 16 cell-stage occurred in about 100 mins after fertilization under 26℃ room temperature, this is slightly different from the observation in this work carried out at 27℃. The completion of all cleavage stages and hatching within 24hrs at 27℃ in this work was similar to the reports of (Freund et al., 1995) and (Kamler et al., 1994) in H. longifilis and C.gariepinus respectively. It has been reported that hatching occurred between 23 to 24 hrs after fertilization at 29℃ in Channa striatus (Marimuthu and Haniffa, 2007), 16 to 18 hrs in H. fossilis at a temperature of 26℃ (Kohli and Vidyarthi (1990), 23.1hrs in H. longifilis at a temperature of 26℃ (Olufeagba, 1999) and 24 hrs in C. punctatus at a temperature of 28℃ (Banerji,1974). From all indications, the rate of embryogenetic development is dependent on temperature during incubation.

As observed in this work, the pattern of division in the formation of blastomeres in many catfishes is comparable; discoidal meroblastic cleavage is the rule (Kamler et al., 1994; Osman et al., 2008; Olufeagba, 1999; Thakur et al., 1974b; Freund et al., 1995; Marimuthu and Haniffa, 2007; Kohli and Vidyarthi, 1990; Banerji, 1974). The timing in most catfishes are also relatively similar as observed by (Osman et al., 2008) in Clarias gariepinus; Marimuthu and Haniffa (2007) in Channa striatus and Olufeagba (1999) in H. longifilis. The mean percentage hatchability obtained was 97.5 %( Table 1) which was slightly below the 100% hatchability that was obtained in this same species before (Majumda , personal comm. 2008), and higher than 60 to 60.5 reported for same species by Haniffa and Sivasubbu (2002). The reason why we did not achieve 100% fertilization rate in this work probably could be due to hypoxial, unripe or over ripe conditions among the eggs and stress during stripping (Figure 4a), and fertilization. Stevens as quoted by (Kamler et al., 1994) described non-viable eggs in Roccus saxatilis to be due to hypoxial within the ovary after ovulation through changes in the ovarian fluid, and this along with other factors like stage of ripeness of eggs affects the final rate of fertilization.

The mean length of the recently hatched fry (Figure 3a) obtained in this work (2.5 mm) and the yolk diameter (0.1 mm) were different from that reported for the same species by Thakur (2003) who gave 2.72 mm as the length of the fry. In similar species, Marimuthu and Haniffa (2007) reported 3.4 mm as the length of newly hatched Channa striatus fry. It is a known fact that the age and size of broodstock affect the size of eggs and subsequently the size of fry. This opinion was established in teleosts by Bagarinao and Chua (1986). This may be the factor majorly responsible for the variation in the mean values of the different authors, more so non gave hints on the size of the female used which may give indication on the sizes of the eggs.

The early development of the optic vesicles was an indication that the eye were functional before the hatchlings started active swimming and this will help to detect food well in advance of mouth formation, development of stomodium, and start of exogenous feeding. The early formation of the heart (Figure 1t) and rudimentary blood circulation at the embryonic shield stage were significant. This implies its functional significance as the network was laid before the embryo increased in size to allow for proper nutrient circulation in the embryo. Though heart beat rate was low initially, the rate continued to increase as the embryo was maturing. Similar observation has been reported in Clarias gariepinus by (Osman et al., 2008) The somatic contraction observed in the embryonic stage has been reported in Channa striatus (Marimuthu and Haniffa, 2007) and H. longifilis (Olufeagba, 1999) and this usually serves as precursor to hatching.

In hatchery management, knowledge of the time of yolk absorption and appropriate starter food are very significant. This is because exogenous feeding must commence few hours to the time of final yolk absorption so that the fry are familiar with external foods. This practice has been found to reduce mortality associated with “4th day mortality” syndrome in most Clariidae. The mouth gap of H. fossilis was observed to be smaller than the usual Artemia, and few that dare eat them had their thin walled stomach spliced by the claws of the Artemia due to improper digestion (Figure 4e). Feeding fry with smaller plankton like Moina micrura and Rotifers will aid higher survival. Similar observation was reported by Villegas and Lumasaga (1991) in similar small catfish like milkfish. Generally, catfish fry are known to have high preference for live zooplankton. Apart from the use of live zooplankton, early survival of fry also depends on water quality and other management practices that will ensure removal of pathogenic microbes. After hatching, the egg shell (chorion wall) has the potential of serving as primary initiator of fungus infection that can cause fry mortality and must be removed, to avoid water pollution. Complete yolk absorption is pointers that fry is commencing exogenous feeding (Figures 3e).The observation on the survival pattern in this work is a pointer to the need for good management at egg incubation stage as high mortality could occur unnoticed. The short duration and easy handling of the embryo stage along with their nutritive value (Thakur, 2003) suggests this species as a very good candidate for aquaculture.

Olufeagba S.O is grateful to Third World Academy of Sciences and CSIR for award of Fellowship (CSIR-TWAS PDF 2007/2008).

Bagarinao T., and Chua T.E., 1986, Egg size and larval size among teleost. Implications to survival potential. In: Maclean, J.L., L.B. Dizon and L.V.Holsilos(eds), The first Asian  fisheries forum. Asian Fisheries Society, Manila, Philippines, Pp. 651-656

Banerji S.R., 1974, Hypophysation and life history of Channa punctatus (Bloch). J. Inland Fish Soc. India 6: 62-73
Borcato F.L., Bazzoli N. , Sato Y., 2004, Embryogenesis and larva ontogeny of the ‘Piau-gordura’ Leporinus piau (Fowler) (Pisces, Anostomidae) after induced spawning. Rev.Braz.Zool, 21, 117-122

Freund F., Gabriele H.S., and Wolfang H., 1995, Seasonality of the reproductive cycle of female Heterobranchus longifilis in tropical pond culture. Aquat. Living Resources,8: 297-302

Haniffa K., Mohammed A., and Sivasubbu S., 2002, Induced spawning of spotted murrel (Channa punctatus) and catfish (H. fossilis) using human chorionic gonado tropin and synthetic hormone (Ovaprim) Veterinarski Arttiv 72(1) : 51-56

Kamler E.M., Zlaminska S., Kuczynski M., Hamackova J., Kouril J., and Daabrowski R., 1994, Temperature induced changes in early development and yolk utilization in the African catfish, Clarias gariepinus. Journal of Fish Biology, 44: 311-326

Kohli M.S.P., and Vidyarthi S., 1990, Induced breeding embryonic and larva development in Heteropneustes fossilis (Bloch) in the agroclimatic conditions of Maharashtra. J. Indian Fish. Assoc, 20:15-19

Koumoundouros G., Divanach P., and Kentouri M., 2001, Osteological development of Dentex dentex (Osteichthyes:Sparidae):dorsal ,anal, paired fins and squamation. Mar.Biol.138, 399-406

Marimuthu K., and Haniffa M.A., 2007, Embryonic and Larval development of the Striped Snakehead Channa striatus Taiwania, 52(1):82-92

Olufeagba S.O., 1999, Induced triploid Heterobranchus longifilis and it’s aquacultural potentials (Val. 1840) (Family: Clariidae). Ph. D. Thesis submitted to Biological Science Department, University of Ilorin. (Unpublished) 166pp

Osman A.G.M., Wuertz S., Mekkawy I.A., Verreth J., and Kirschbaum, 2008, Early development of the African catfish Clarias gariepinus(Burchell, 1822), focusing on the ontogeny of selected organ. Journal of Applied Ichthyology, (24) pp187-195

Roy S., and Pal B.C., 2006. Quantitative and qualitative analysis of spawning behavior of H. fossilis (Bloch) (Siluridae) in Laboratory aquaria. Journal of Fish Biology Vol 28(3)247-254

Thakur P.D., 2003, Stinging catfish Heteropneustes fossilis. In: Aqua News Vol. 18 No 3/Summer 2003

Thakur N.K., Pal R. N., Khan H.A., 1974, Embryonic and larval development of an air-breathing catfish Clarias batrachus (Linn).J.Inland Fish.Soc, 12,30-43

Thakur, N.K., Pal R.N., and Khan H.A., 1974, Embryonic and larval development of Heteropneustes fossilis ( Block). J.Inland Fish.Soc. India, VI: 33-44

Verreth, J., Torreele, E., Spazier, E., Sluiszen, V., Rombout, J., Booms, R., 1992, The development of a functional digestive system in the African catfish Clarias gariepinus(Butchel). J. World Aquac. Soc. 23, 286-298

Villegas C.T., and Lumasaga G.L., 1991, Biological evaluation of frozen zooplankton as food for milkfish. J. Appl. Ichtyol, 7: 65-7
